DmxControlPro 3: Patchbay

[back to index]

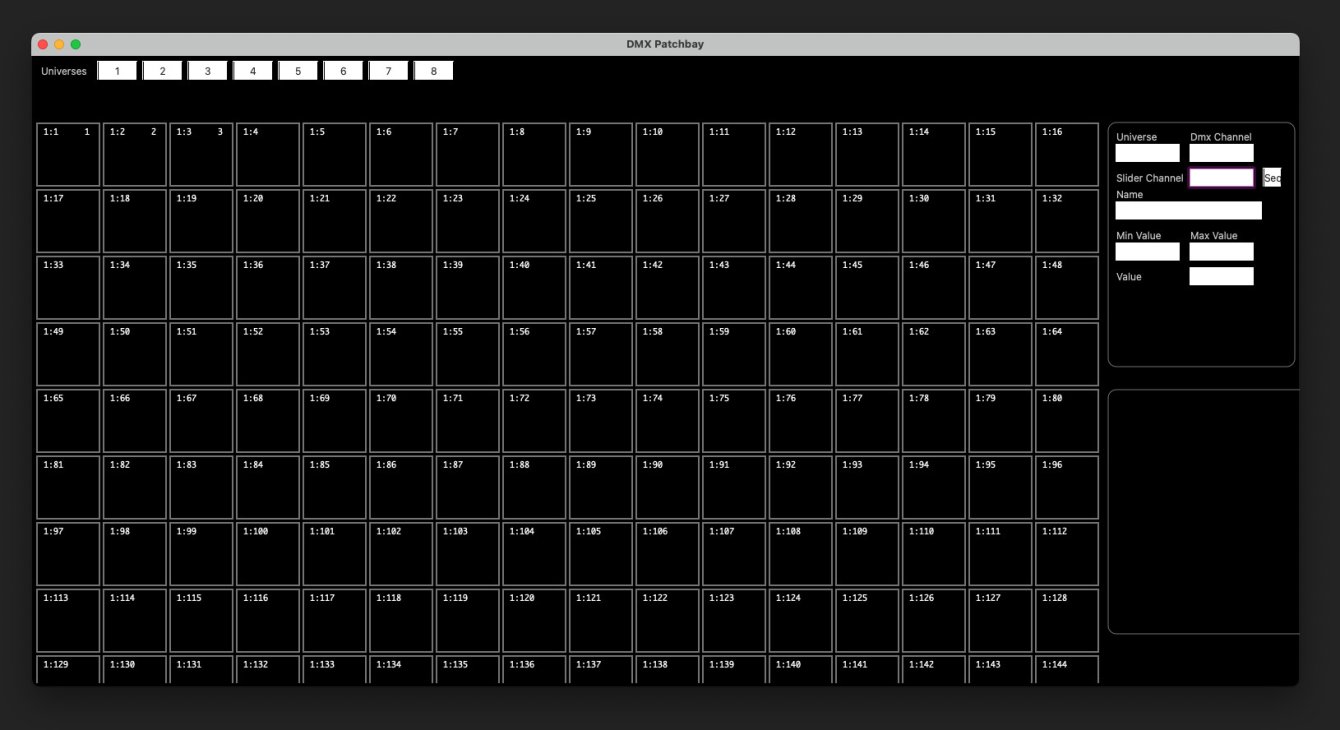

In the patchbay you can connect slider channels to actual DMX channels. This way, you can connect 256 sliders to DMX channels across 8 universes.

You can also connect a slider channel to multiple DMX channels.

TIP: A DMX channel that is not connected to a slider can be set to a static value by filling out the value field. It can also be given a name.

Editing channels at once

To edit DMX channels at once, click on a channel in the Patchbay Window. SHIFT-click on another item to select the whole range. With CMD-click you can include or exclude individual channels. If you click the button [Seq], the channels will connect sequentially to the sliders.

Additional parameters

There are a few additional parameters you can change per DMX channel. You can name the DMX (and Slider) channel, you can set a Min. Value and a Max. Value. Also, there is the possibility to set a value to a specific DMX channel.
